how to install the battery equalizer for 4 x 12.8v LiFepO4 battery Correctly?

Installing a battery equalizer for a 4 x 12.8V LiFePO4 (Lithium Iron Phosphate) battery setup involves several steps:

1. Ensure Safety: Before starting any electrical work, wear appropriate personal protective equipment (PPE) such as gloves and safety glasses. Ensure that the battery bank is disconnected from any power source to avoid electric shock or short circuits.
2. Identify Batteries: Locate the four 12.8V LiFePO4 batteries in your setup. Identify the positive (+) and negative (-) terminals of each battery.
3. Select Equalizer: Choose a battery equalizer that is specifically designed for LiFePO4 batteries and compatible with your voltage (in this case, 12.8V). Ensure that the equalizer has the necessary features for balancing and protecting your battery bank.
4. Position Equalizer: Decide where to install the battery equalizer within your battery bank. Choose a location that allows for easy access and proper ventilation. Ensure that the equalizer’s dimensions and mounting requirements align with the available space.
5. Connect Equalizer Cables: The equalizer will have cables for connecting to the positive and negative terminals of the batteries. Connect the positive cable from the equalizer to the positive terminal of the first battery in the bank. Continue connecting the cables in series to the positive terminals of the subsequent batteries. Repeat the same process for the negative terminals, connecting the negative cable from the equalizer to the negative terminal of the first battery and continuing in series.
6. Verify Connections: Double-check all connections to ensure they are secure and properly tightened. Loose connections can cause overheating or electrical arcing.
7. Install Temperature Sensors (if applicable): Some battery equalizers come with temperature sensors that help monitor battery temperature and adjust balancing accordingly. If your equalizer includes temperature sensors, install them according to the manufacturer’s instructions.

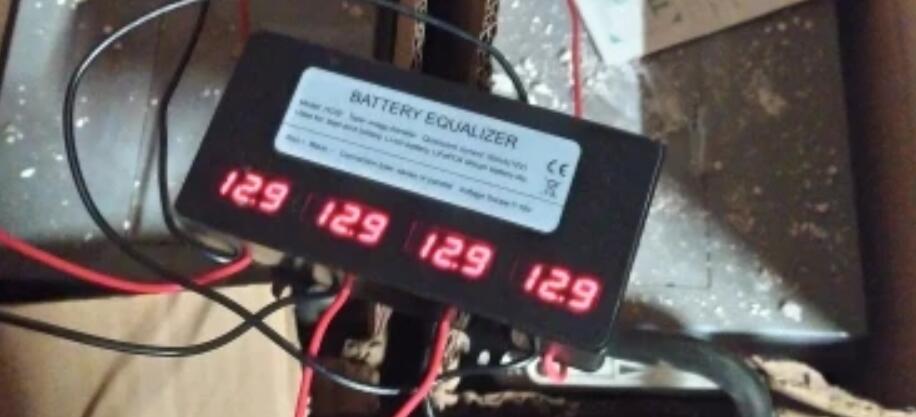

8. Power On and Test: Once all connections are made, power on the battery bank and equalizer. Monitor the equalizer’s operation to ensure it is functioning correctly and balancing the voltages across the batteries.
9. Regular Maintenance: Periodically check the connections and overall condition of the equalizer to ensure proper operation. Follow any maintenance recommendations provided by the manufacturer to keep the equalizer in optimal condition.

By following these steps, you can safely and effectively install a battery equalizer for your 4 x 12.8V LiFePO4 battery setup, ensuring balanced voltages and optimized performance. If you’re uncertain about any aspect of the installation process, consult the manufacturer’s instructions or seek assistance from a qualified technician.
